Manufacturing Data
| Material | 18mm raw MDF |
| Tool | 6mm Compression End Mill |
| RPM | 18000 RPM |
| Feed Rate | 4500 mm/min |
| Pass Depth | 9mm per pass |
| Machine Time | ~120 minutes |
| Assembly Time | ~ 20 minutes |
| Machine Type | SMART-MAXSPEED-2137 CNC Router |
| CAM Software | Aspire |

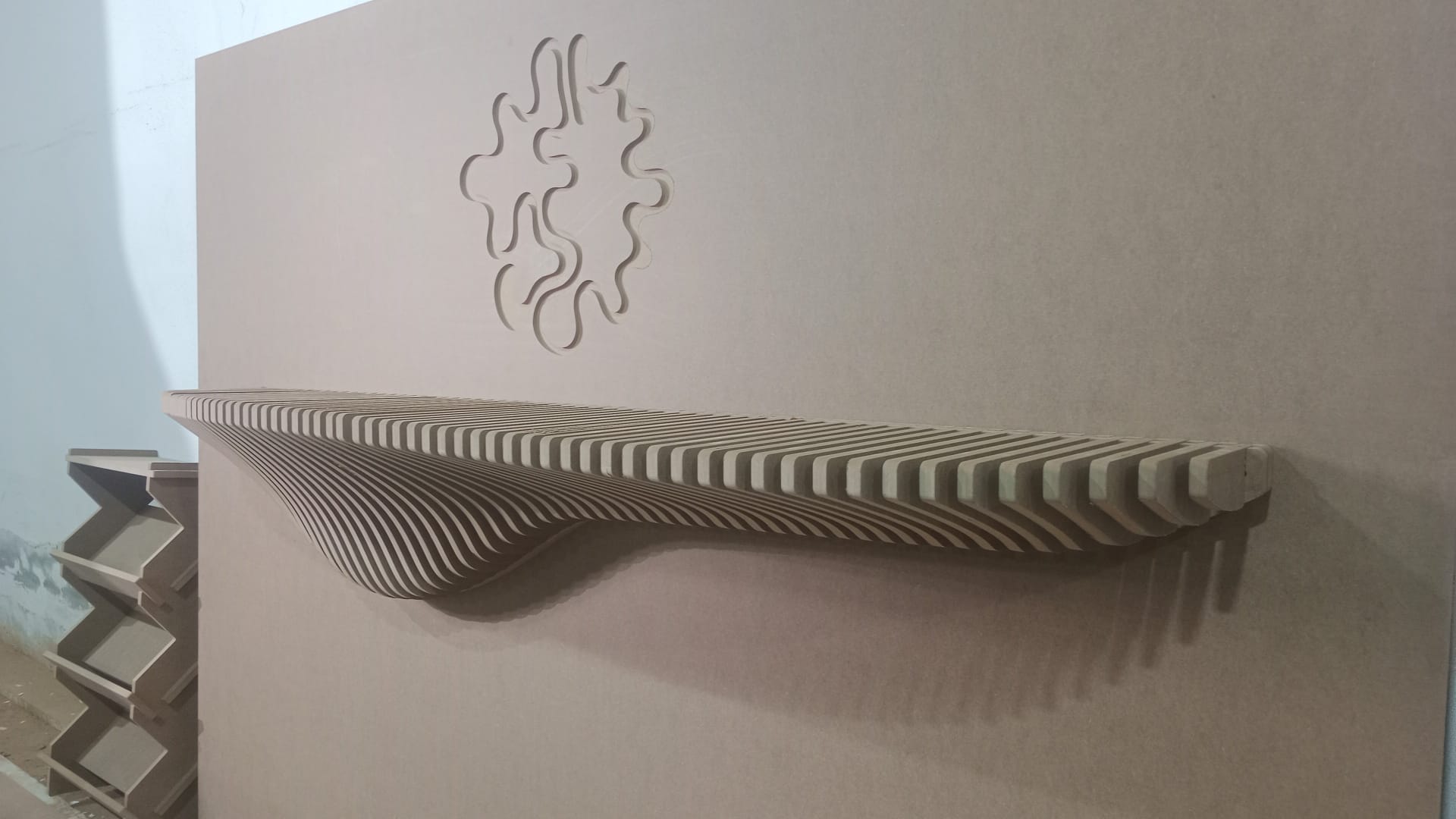

Build Summary
Production build of the Parametric Wall Shelf A-1 using industrial CNC routing on raw MDF sheet material. The project was manufactured with a multi-axis automatic tool-changing CNC system and assembled as a full-scale physical prototype.
Fabrication Notes
Toolpaths were optimized for stable cutting on large MDF sheets. Vacuum hold-down improved machining consistency during long profile operations. Final assembly required only minimal surface finishing.
