Parametric Bench A-6

Parametric Bench A-6

$20.00 USD

Only Digital Project

No Refund

Home N People

We prioritize quality in selecting the materials for our items, choosing premium fabrics and finishings that ensure durability, comfort, and timeless appeal.

What You Will Get

Your purchase includes a .ZIP file containing the complete project in the following formats. Please ensure your software is compatible with at least one of these file types before buying.

●SVG
●DXF
●DWG
●PDF

Details
✅𝗛𝗢𝗠𝗘𝗡𝗣𝗘𝗢𝗣𝗟𝗘

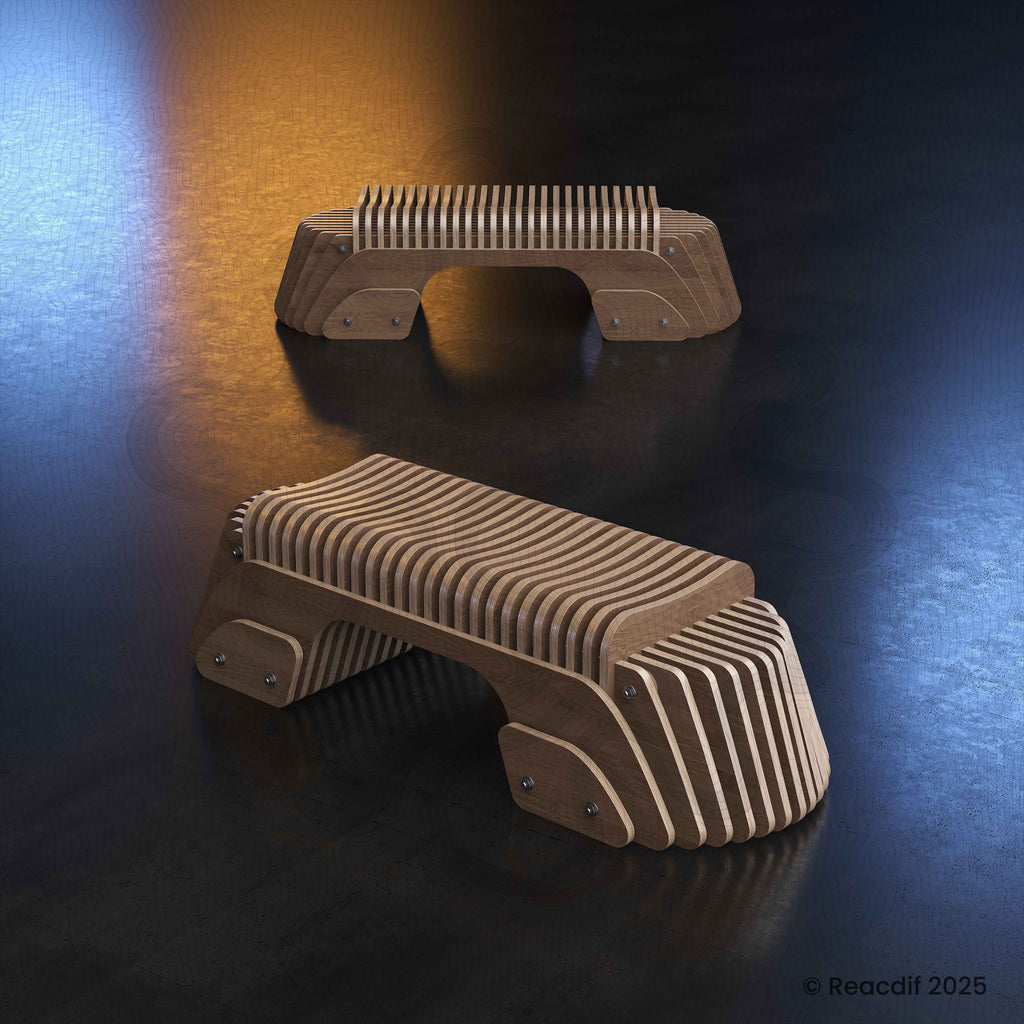

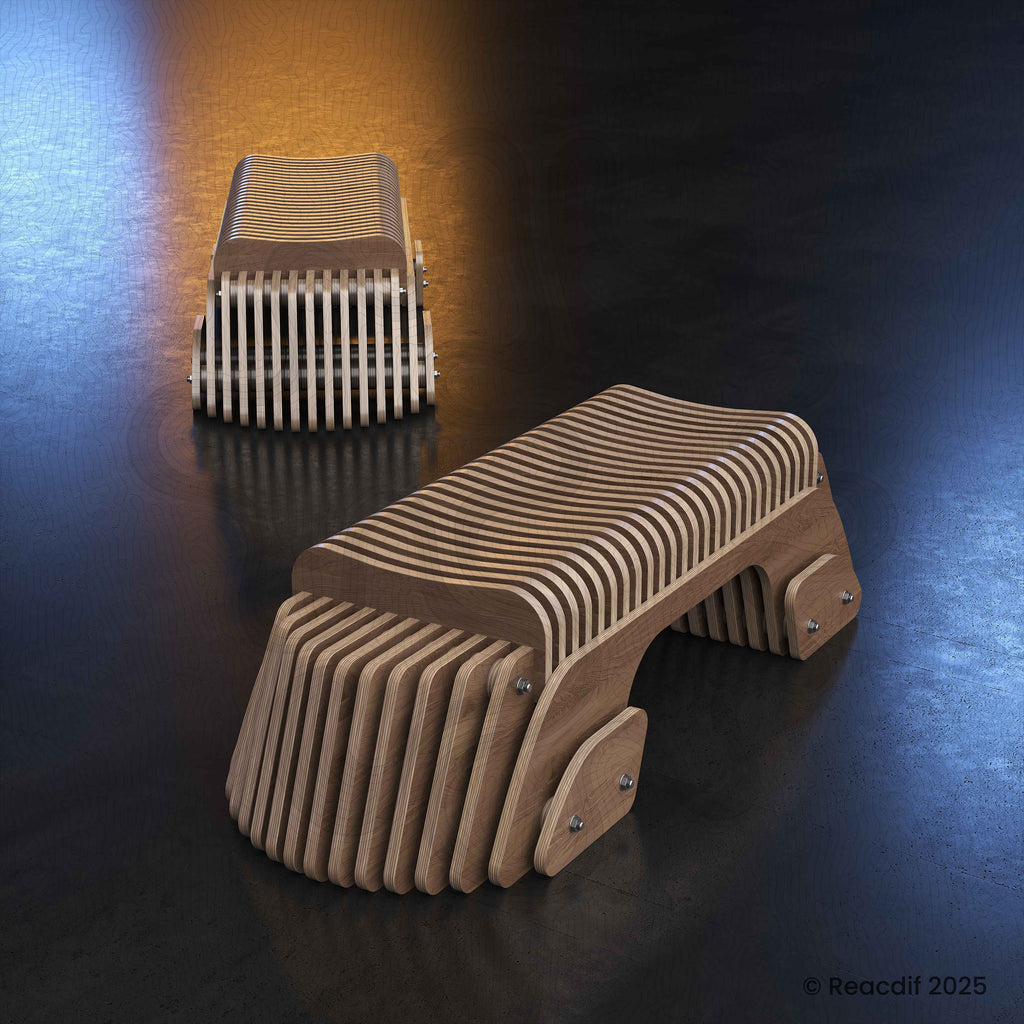

A stunning parametric wooden bench, meticulously designed for both indoor and outdoor use.

Its unique, sculptural form adds a modern touch to any environment, making it:
+Perfect for your living room, office, or garden.
+An iconic statement piece for hotel lobbies and poolside areas.

●𝗜𝗠𝗣𝗢𝗥𝗧𝗔𝗡𝗧: Choose Your Project Version 𝗖𝗼𝗿𝗿𝗲𝗰𝘁𝗹𝘆!

𝗖𝗵𝗼𝗼𝘀𝗶𝗻𝗴 𝘁𝗵𝗲 𝘃𝗲𝗿𝘀𝗶𝗼𝗻 𝘁𝗵𝗮𝘁 𝗺𝗮𝘁𝗰𝗵𝗲𝘀 𝘆𝗼𝘂𝗿 𝗹𝗼𝗰𝗮𝗹𝗹𝘆 𝗮𝘃𝗮𝗶𝗹𝗮𝗯𝗹𝗲 𝗺𝗮𝘁𝗲𝗿𝗶𝗮𝗹𝘀 𝗶𝘀 𝗰𝗿𝗶𝘁𝗶𝗰𝗮𝗹 𝗳𝗼𝗿 𝗮 𝘀𝘂𝗰𝗰𝗲𝘀𝘀𝗳𝘂𝗹 𝗯𝘂𝗶𝗹𝗱.
𝗬𝗼𝘂 𝘄𝗶𝗹𝗹 𝗿𝗲𝗰𝗲𝗶𝘃𝗲 𝘁𝗵𝗲 𝗽𝗿𝗼𝗷𝗲𝗰𝘁 𝗳𝗶𝗹𝗲𝘀 𝗳𝗼𝗿 𝘁𝗵𝗲 𝘃𝗲𝗿𝘀𝗶𝗼𝗻 𝘆𝗼𝘂 𝘀𝗲𝗹𝗲𝗰𝘁.

>>>𝗠𝗠 𝗩𝗲𝗿𝘀𝗶𝗼𝗻
 For materials based on Metric units (e.g., 12mm, 18mm).
>>>𝗜𝗡𝗖𝗛 𝗩𝗲𝗿𝘀𝗶𝗼𝗻
 For materials based on Imperial units (e.g., 1/2", 3/4").

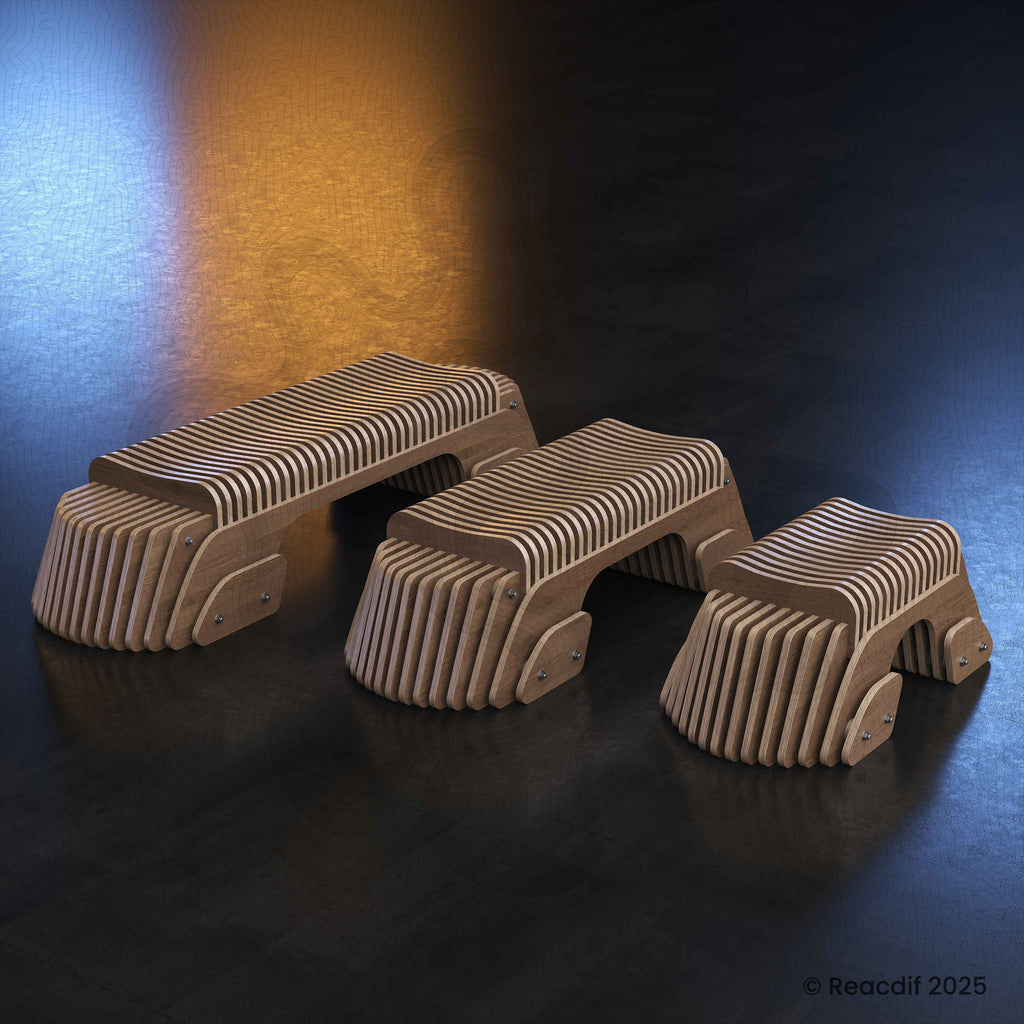

3 Different MM Sizes
-SMALL : 1000 x 364 x 486mm
-MEDIUM : 1400 x 364 x 522mm
-LARGE : 1800 x 364 x 558mm

3 Different INCH Sizes
-SMALL : 41.67 x 14.34 x 20.25"
-MEDIUM : 58.33 x 14.34 x 21.75"
-LARGE : 75.00 x 14.34 x 23.25"

Read the starred section for detailed explanations:
★★★★★★★★★★★★★★★★★★★★

Parametric Bench A-6a S

Measurement: MM
Wood Type: Plywood or Mdf
Thickness: 18mm
1.5 Sheets-Size: 1220x2440mm

Overall Width: 1000mm
Overall Height:364mm
Overall Depth: 486mm
Seating Width: 522mm
Seating Height:364mm
Seating Depth: 378mm

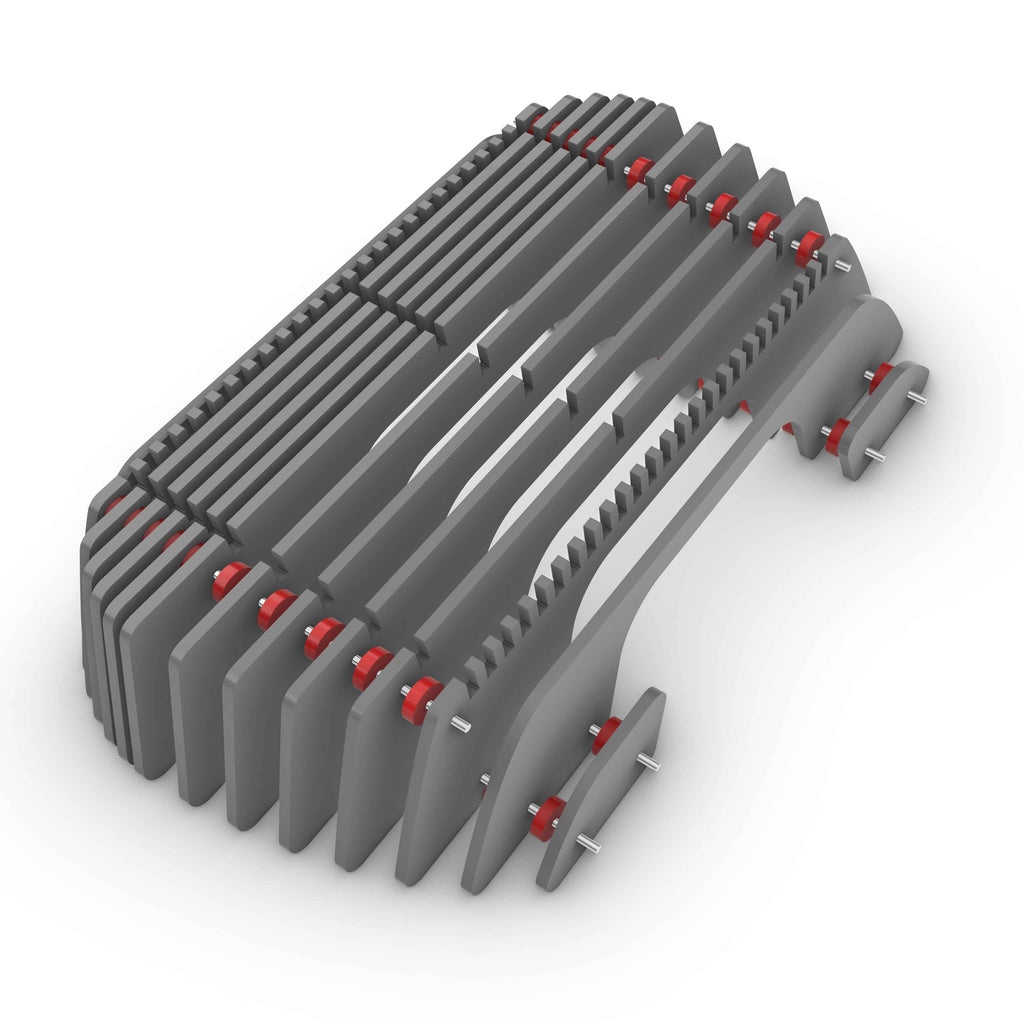

Slices: 31 parts + 52 circles
Required Hardware: Threaded rod - M12 - 12mm diameter - 2200mm long
Required CNC Bit: ideal 6mm diameter or smaller
File Types: DXF, SVG, DWG, PDF

★★★★★★★★★★★★★★★★★★★★

Parametric Bench A-6b M

Measurement: MM
Wood Type: Plywood or Mdf
Thickness: 18mm
2.5 Sheets-Size: 1220x2440mm

Overall Width: 1400mm
Overall Height:364mm
Overall Depth: 522mm
Seating Width: 882mm
Seating Height:364mm
Seating Depth: 414mm

Slices: 42 parts + 76 circles
Required Hardware: Threaded rod - M12 - 12mm diameter - 3250mm long
Required CNC Bit: ideal 6mm diameter or smaller
File Types: DXF, SVG, DWG, PDF

★★★★★★★★★★★★★★★★★★★★

Parametric Bench A-6c L

Measurement: MM
Wood Type: Plywood or Mdf
Thickness: 18mm
3.5 Sheets-Size: 1220x2440mm

Overall Width: 1800mm
Overall Height:364mm
Overall Depth: 558mm
Seating Width: 1170mm
Seating Height:364mm
Seating Depth: 450mm

Slices: 51 parts + 82 circles
Required Hardware: Threaded rod - M12 - 12mm diameter - 3500mm long
Required CNC Bit: ideal 6mm diameter or smaller
File Types: DXF, SVG, DWG, PDF

★★★★★★★★★★★★★★★★★★★★
★★★★★★★★★★★★★★★★★★★★

Parametric Bench A-6a S

Measurement: INCH
Wood Type: Plywood or Mdf
Thickness: 3/4"
1.5 Sheets-Size: 4x8ft. - 48x96"

Overall Width: 41.67"
Overall Height: 14.34"
Overall Depth: 20.25"
Seating Width: 21.75"
Seating Height:14.34"
Seating Depth: 15.75"

Slices: 31 parts + 52 circles
Required Hardware: Threaded rod - 1/2" diameter - 93" long
Required CNC Bit: ideal 1/4" diameter or smaller
File Types: DXF, SVG, DWG, PDF

★★★★★★★★★★★★★★★★★★★★

Parametric Bench A-6b M

Measurement: INCH
Wood Type: Plywood or Mdf
Thickness: 3/4"
2.5 Sheets-Size: 4x8ft. - 48x96"

Overall Width: 58.33"
Overall Height: 14.34"
Overall Depth: 21.75"
Seating Width: 36.75"
Seating Height:14.34"
Seating Depth: 17.25"

Slices: 42 parts + 76 circles
Required Hardware: Threaded rod - 1/2" diameter - 134" long
Required CNC Bit: ideal 1/4" diameter or smaller
File Types: DXF, SVG, DWG, PDF

★★★★★★★★★★★★★★★★★★★★

Parametric Bench A-6c L

Measurement: INCH
Wood Type: Plywood or Mdf
Thickness: 3/4"
3.5 Sheets-Size: 4x8ft. - 48x96"

Overall Width: 75.00"
Overall Height: 14.34"
Overall Depth: 23.25"
Seating Width: 48.75"
Seating Height:14.34"
Seating Depth: 18.75"

Slices: 51 parts + 82 circles
Required Hardware: Threaded rod - 1/2" diameter - 144" long
Required CNC Bit: ideal 1/4" diameter or smaller
File Types: DXF, SVG, DWG, PDF

★★★★★★★★★★★★★★★★★★★★



How to Download

Immediately after your payment is confirmed, you will receive an email with a secure link to download your files.

Frequently Asked Questions (FAQ)

Q: How many sheets of plywood/MDF do I need to buy?
A: The exact number of sheets required for each size is specified in the "Technical Details" section on this page and in the project's info file. This can change from project to project.

Q: What kind of hardware do I need and in what quantity?
A: All required hardware (threaded rods, nuts, washers, etc.) with their specific dimensions and quantities are listed in the "Technical Details" section. Please note that you may need to cut the threaded rods to the specified lengths.

Q: Which project version (mm or inch) should I buy?
A: You should choose the version that matches the standard material thicknesses available in your country. If you buy wood in millimeters (e.g., 12mm), choose the MM Version. If you buy wood in inches (e.g., 1/2"), choose the INCH Version.

Q: Can I sell the furniture I make from these plans?
A: Our Maker License (single project purchase) is for personal, non-commercial use only. To sell physical products you make, you need to subscribe to our Studio or Pro Partner commercial license plans.

Q: What if I don't have a CNC machine?
A: You can take the provided DXF/SVG files to a local CNC cutting service or a "maker space" in your area. They will be able to cut the parts for you.

Q: Can I get a refund?
A: Due to the digital nature of our products, all sales are final and we do not offer refunds. Please make sure to review all project details before purchasing.

Policies & Terms

PLEASE NOTE

This is a digital product only. No physical item will be shipped.
The photos are for representation purposes. All accessories and decorative items shown in the images are not included in the project files.

DESIGN ACCURACY & REFUND POLICY

We take great care to ensure all our project files meet the highest professional standards and are free from errors. However, should you identify a verifiable technical design error in the purchased files that prevents the successful construction of the project (e.g., parts that do not fit together, inconsistent dimensions), we ask you to contact us at [destek@reacdif.pro].

Upon verification of the error by our team, we will promptly provide you with a corrected, updated project file. If we are unable to correct the error, or if you prefer, we will issue a full refund of the project fee you paid.

This guarantee is strictly limited to the refund of the project purchase price. Reacdif.pro cannot be held liable for any costs related to wasted materials, labor, or other indirect damages resulting from the design error. We recommend a preliminary check of all parts and measurements before starting the cutting process.


TERM OF USE & DISCLAIMER OF LIABILITY
Nature of the Product: All project files sold on Reacdif.pro are theoretical digital plans created with professional CAD software. While some projects may be showcased via assembly videos, we do not provide a 100% guarantee of accuracy or flawlessness. The plans are provided on an "as-is" basis.

Assumption of Risk: By purchasing these plans, you, the user, assume all responsibility and risk for the construction, assembly, and use of the final product. This includes, but is not limited to, the selection of materials, the use of tools and machinery, and ensuring a safe work environment.

Limitation of Liability: Reacdif.pro shall not be held liable for any personal injury, property damage, financial loss, or any other damages resulting from the use of, or inability to use, these project files.

User Responsibility: The user is solely responsible for sourcing the correct materials in the quantities and thicknesses specified in the project details. Reacdif.pro is not liable for any costs incurred due to incorrectly or excessively purchased materials. The choice of finishing materials (primer, paint, varnish, etc.) and the application process are also the sole responsibility of the user.

Acceptance of Terms: Your purchase of this digital product constitutes your full and unconditional acceptance of these terms.
